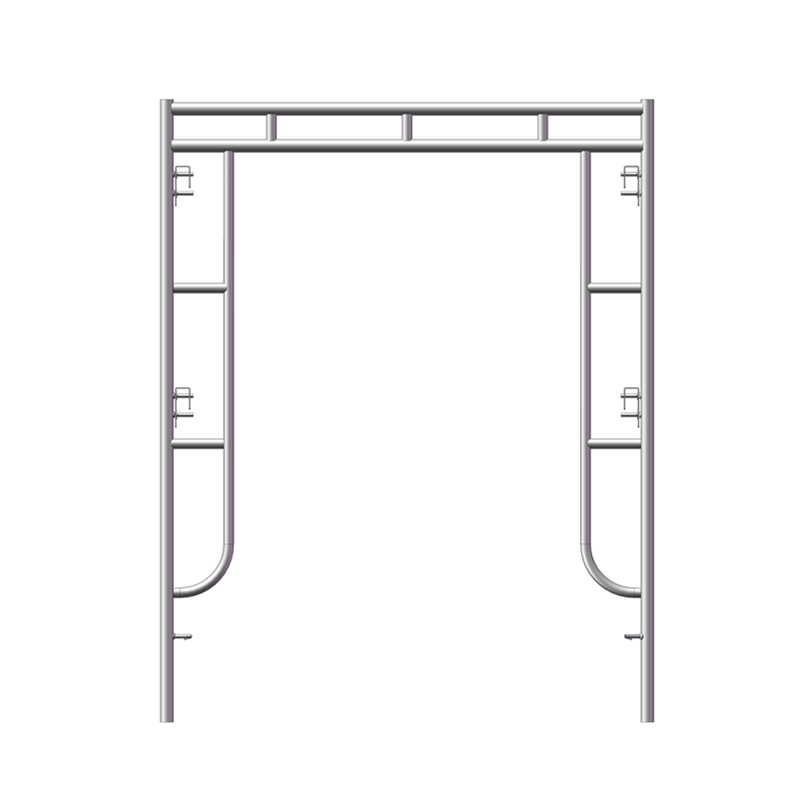

Walk thru scaffold frame

Walk thru scaffold frame Featured Image
  • Walk thru scaffold frame
  • Walk thru scaffold frame
  • Walk thru scaffold frame

Short Description:


  • Min.Order Quantity: One container
  • Production time: usually 25 days
  • Port: Xingang Tianjin Port in China
  • Payment Terms: L/C,D/A,D/P,T/T
  • Standard: ANSI/SSFI SC100-5/05
  • Finishing: Pre - galvanized /painted /power coated
  • Advantages: 1. Easily assembled  2. Fast erection and dismantling  3. High-strength steel tubing  4. Safe, efficient and dependable
    • Download as PDF

    Product Detail

    Product Tags

    scaffolding

    Frame scaffolding system

    Standard:ANSI/SSFI SC100-5/05

    Finishing:  Pre - galvanized /painted /power coated

    Advantages  :

    1. Easily assembled

    2. Fast erection and dismantling

    3. High-strength steel tubing

    4. Safe, efficient and dependable

    American frame

    Walk thru frame

    Item No. Width Height weight
    YFAFW 1519 1524 mm/ 5’ 1930.4 mm/ 6’4” 21.45 kg / 47.25 lbs
    YFAFW 0919 914.4 mm/ 3’ 1930.4 mm/ 6’4” 18.73 kg / 41.25 lbs
    YFAFW 1520 1524 mm/ 5’ 2006.6 mm/ 6’7” 22.84 kg / 50.32 lbs
    YFAFW 0920 914.4 mm/ 3’ 2006.6 mm/ 6’7” 18.31 kg / 43.42 lbs
    YFAFW 1019 1066.8 mm/ 42” 1930.4 mm/ 6’4” 19.18 kg / 42.24 lbs
    walk thru frame

    Walk thru - Apartment frame  ( OD: 1.625 ”)

    Item No. Width Height weight
    YFAFA 0926 914.4 mm/ 3’ 2641.6 mm/ 8’8” 21.34 kg /47 lbs
    YFAFA 0932 914.4 mm/3’ 3251.2 mm/ 10’8” 25.22 kg /55.56 lbs
    YFAFA 0935 914.4 mm/3’ 3556 mm/11’8” 26.51 kg / 58.4 lbs
    Walk thru Apartment frame

    Walk thru - Apartment frame with 18” ladder ( OD: 1.625 ”)

    Item No. Width Height weight
    YFAFAL 0926 914.4 mm/ 3’ 2641.6 mm/ 8’8” 21.34 kg /47 lbs
    YFAFAL 0932 914.4 mm/3’ 3251.2 mm/ 10’8” 37.07 kg /81.65 lbs
    YFAFAL 0935 914.4 mm/3’ 3556 mm/11’8” 40 kg / 88.11 lbs
    Walk thru - Apartment frame

    Mason frame（OD:1.69”)

    Item No. Width Height weight
    YFAFM 1519 1524 mm/ 5’ 1930.4 mm/ 6’4” 20.43 kg / 45 lbs
    YFAFM 1515 1524 mm/ 5’ 1524 mm/ 5’ 16.87 kg / 37.15 lbs
    YFAFM 1512 1524 mm/ 5’ 1219.2 mm/ 4’ 15.30 kg / 33.7 lbs
    YFAFM 1509 1524 mm/ 5’ 914.4 mm/ 3’ 12.53 kg / 27.6 lbs
    YFAFM 1506 1524 mm/ 5’ 609.6 mm/ 2’ 11.31 kg /24.91 lbs
    Mason frame

    Box frame

    Item No. Width Height weight
    YFAFB 1505 1524 mm/ 5’ 508 mm/ 20” 10.41 kg / 22.92 lbs
    YFAFB 0905 914.4 mm/ 3’ 508 mm/ 20” 7.70 kg / 16.97 lbs
    YFAFB 1510 1524 mm/ 5’ 1016 mm/ 40” 12.91 kg /28.43 lbs
    YFAFB 0910 914.4 mm/ 3’ 1016 mm/ 40” 10.71 kg / 23.58 lbs
    Box frame

    Double box frame

    Item No. Width Height weight
    YFAFDB 1520 1524 mm/ 5’ 2032 mm/6’8” 24.47 kg / 53.24 lbs
    YFAFDB 1515 1524 mm/ 5’ 1524 mm/5’ 19.40 kg / 42.73 lbs
    Double box frame

    Narrow frame/ ladder frame (OD: 1.69”)

    Item No. Width Height weight
    YFAFN 0919 914.4 mm/ 3’ 1930.4 mm/ 6’4” 16.00 kg / 35.24 lbs
    YFAFN 0915 914.4 mm/3’ 1524 mm/ 5’ 14.41 kg / 31.75 lbs
    YFAFN 0909 914.4 mm/3’ 914.4 mm/3’ 10.15 kg / 22.36 lbs
    YFAFN 0615 609.6 mm/ 2’ 1524 mm/ 5’ 11.67 kg / 25.7 lbs
    YFAFN 0609 609.6 mm/ 2’ 914.4 mm/3’ 7.81 kg /17.2 lbs
    Narrow frame

    Main frame

    Material: Q195 & Q235                 Surface treatment: Pre- galvanized /painted/power coated

    Outer tube: φ42*2 mm                 Inner tube:25*1.5 mm

    Walk through frame / H frame

    Item No. Dimension(W*H) Weight
    YFHF 1219 1219*1930 mm 14.3 kg
    YFHF 1217 1219*1700 mm 12.8 kg
    YFHF 1215 1219*1524 mm 11.4 kg
    YFHF 0919 914*1930 mm 13.4 kg
    YFHF 0917 914*1700 mm 12.3 kg
    H frame

    Mason frame/ ladder frame

    Item No. Dimension(W*H) Weight
    YFMF 1219 1219*1930 mm 15.2 kg
    YFMF 1217 1219*1700 mm 13.5 kg
    YFMF 1215 1219*1524 mm 10.82 kg
    YFMF 1209 1219*914 mm 8.7 kg
    YFMF 0915 914*1524 mm 10.9 kg
    Mason frame
