Quick lock Scaffolding System

Short Description:

Quicklock scaffolding system is widely used to support concrete wall and slab beams by connecting U head jackand jack base.

Min.Order Quantity: One container

Production time: usually 25 days

Port: Xingang Tianjin Port in China

Payment Terms: L/C,D/A,D/P,T/T

Finishing: Painted or hot dipped galvanized

Material: Q235, Q355

Send email to us Download as PDF

Product Detail

Product Tags

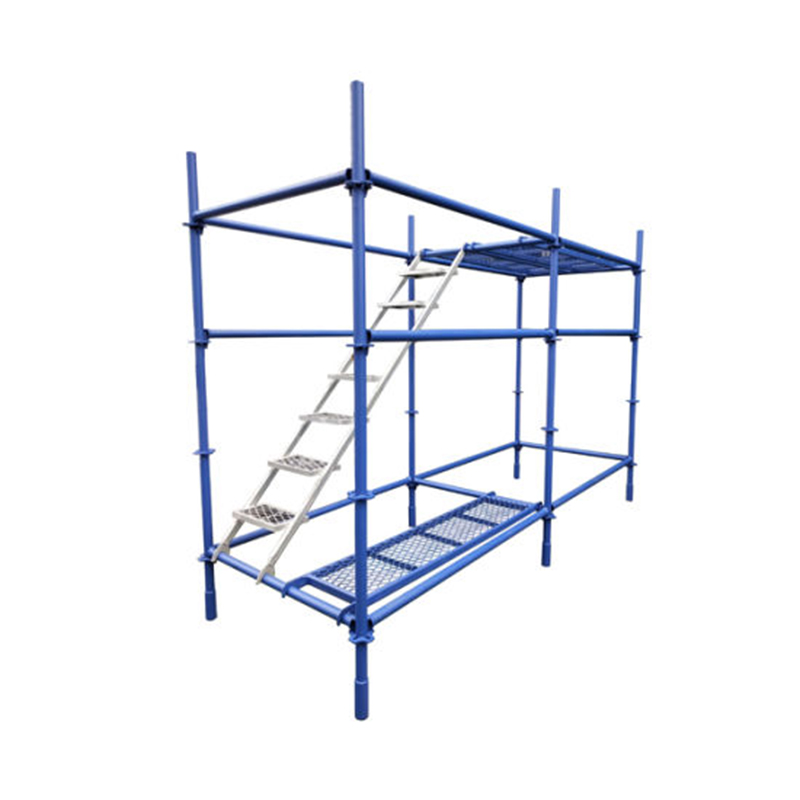

Quicklock scaffolding system

Material : Q235

Finishing: Painted

Quicklock Scaffolding Standard / Vertical

Material : Q235/ Q355

Spec: 48.3*3.25 mm

Item No.	Length	Weight
YFQLS 300	3 m	17.6 kg
YFQLS 240	2.4 m	13.82 kg
YFQLS 180	1.8 m	10.52 kg
YFQLS 120	1.2 m	7.31 kg
YFQLS 090	0.9 m	5.67 kg
YFQLS 060	0.6 m	3.92 kg

Quick lock ledger/ Horizontal

Material : Q235

Spec:48.3*3 mm

Item No.	Length	Weight
YFQLL 240	2.4 m	9.93 kg
YFQLL 180	1.8 m	7.63 kg
YFQLL 150	1.5 m	6.48 kg
YFQLL 120	1.2 m	5.32 kg
YFQLL 090	0.9 m	4.17 kg
YFQLL 060	0.6 m	3.02 kg

Quicklock scaffolding accessories

Coupler connected Adapter plug

Other Types of Scaffoldings:

Ringlock Scaffolding
