Short Description:

seamless and welded iron pipe fitting

H.S. CODE: 73079300


  • Min.Order Quantity: One container
  • Production time: usually 25 days
  • Port: Xingang Tianjin Port in China
  • Payment Terms: L/C,D/A,D/P,T/T
  • Price: FOB CFR CIF
  • Place of Origin: China
    • Download as PDF

    Product Detail

    Product Tags

    Tianjin Youfa International Trade Co., Ltd

    Malleable Iron Galvanized and Black Fitting

    Standard: ENGB/T-3287 ; BS EN-10242; KHT300-6 etc.

    Material: Malleable Iron

    Surface: Galvanized or Natural Black

    Inner Surface: With or Without PVC Coated

    Bushing

    SIZE In 3/8*1/4 1/2*1/4 1/2*3/8 3/4*3/8 3/4*1/2 1*1/2
    mm 10x8 18x8 15x10 20x10 20x15
    L 18.5 22.5 22.5 24.5 24.5 28
    H 6 6 6 6 6 6
    S 18.4 22 22 29.6 29.6 37.4
    Bushing

    Union

    SIZE In  1/2  3/4 1 1 1/4 1 1/2 2
    mm 15 20 25 32 40 50
    L 46 50 56 63 68 76
    SIZE In 2 1/2 3 4
    mm 65 80 100
    L 83 93 113.5
    union

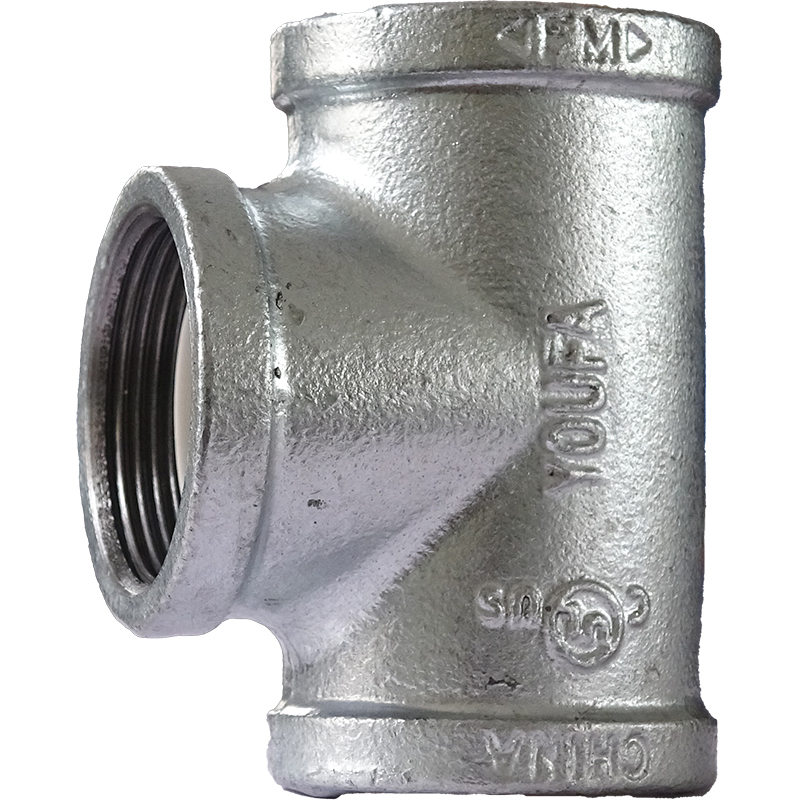

    Straight Tee

    SIZE In  1/4  3/8  1/2  3/4 1 1 1/4
    mm 8 10 15 20 25 32
    A 20 24 27 32 37 44.5
    SIZE In 1 1/2 2 2 1/2 3 4 6
    mm 40 50 65 80 100 150
    A 48.5 57 68.5 77.5 96.5 129
    DSC00019 拷贝

    Coupling

    SIZE In  1/4  3/8  1/2  3/4 1 1 1/4
    mm 8 10 15 20 25 32
    L 26 29 35 38 44 49
    SIZE In 1 1/2 2 2 1/2 3 4 6
    mm 40 50 65 80 100 150
    L 53 63 72 77 91 118
    DSC00026 拷贝

    Reducering Socket

    Size mm 10x8 15x8 15x10 20x15 25x10 25x15
    In 3/8x1/4 1/2x1/4 1/2x3/8 3/4x1/2 1x3/8 1x1/2
    A 29 35 36 38 44 44
    Size mm 32x15 32x20 32x25 40x15 40x20 40x25
    In 1¼x1/2 1¼x3/4 1¼ x1 1½x1/2 1 ½x 3/ 4 1½ x1
    A 49 49 49 53 53 53
    Size mm 40x32 50x15 50x20 50x25 50x32 50x40
    In 1½x1¼ 2 x1/2 2x3/4 2x1 2x1¼ 2x1½
    A 53 63 63 63 63 63
    Size mm 65x15 65 x 20 65x25 65x32 65x40 65x50
    In 2½x1/2 2 ½x3/4 2 1/2x2 2½ x1¼ 2 ½x1½ 2 ½ x2
    A 72 72 72 72 72 72
    Size mm 80x15 80x 20 80x25 80x32 80x40 80x50
    In 3 x 1/2 3x3/4 3x1 3x1¼ 3x1½ 3x2
    A 71 71 71 71 71 71
    Size mm 80x65 100 x15 100x20 100 x 25 100x32 100x40
    In 3x2½ 4x1/2 4x3/4 4x1 4x1¼ 4x 1½
    A 71 84 84 84 84 84
    Size mm 100x50 100x 65 100x80 25x20
    In 4x2 4x2½ 4x3 1x3/4
    A 84 84 84 44
    Reducering Socket

    Octagonal Cap

    Size In  3/8  1/2  3/4 1 1 1/4 1 1/2
    mm 10 15 20 25 32 40
    A 17 19 22 24 27 28
    S 20.6 24.6 30.4 37.2 47 53
    Size In 2
    mm 50
    A 32
    S 65
    Octagonal Cap

    Plain Plug

    Size In  1/4  3/8  1/2  3/4 1 1¼
    mm 8 10 15 20 25 32
    L 15.5 17 22.5 24 27 30
    B 1 0 10 13 14 16 5 20
    S 6 7 10 12 15 18
    Size In 1½ 2 2½ 3 4
    mm 40 50 65 80 100
    L 31 36 40.5 45.5 51
    B 21 25 26 5 29.5
    s 22 26 30 34 44
    plain plug

    Barrel Nipple

    Size In  1/4  3/8  1/2  3/4 1 1 1/4
    mm 8 10 15 20 25 32
    L 36 36 44 47 53 56
    S 16.7 19.2 23.6 29.2 36 45
    Size In 1 1/2 2 2 1/2 3 4
    mm 40 50 65 80 100
    L 58 68 73 81 95
    S 63 63 79.4 91.6 117
    cast_iron_nipple

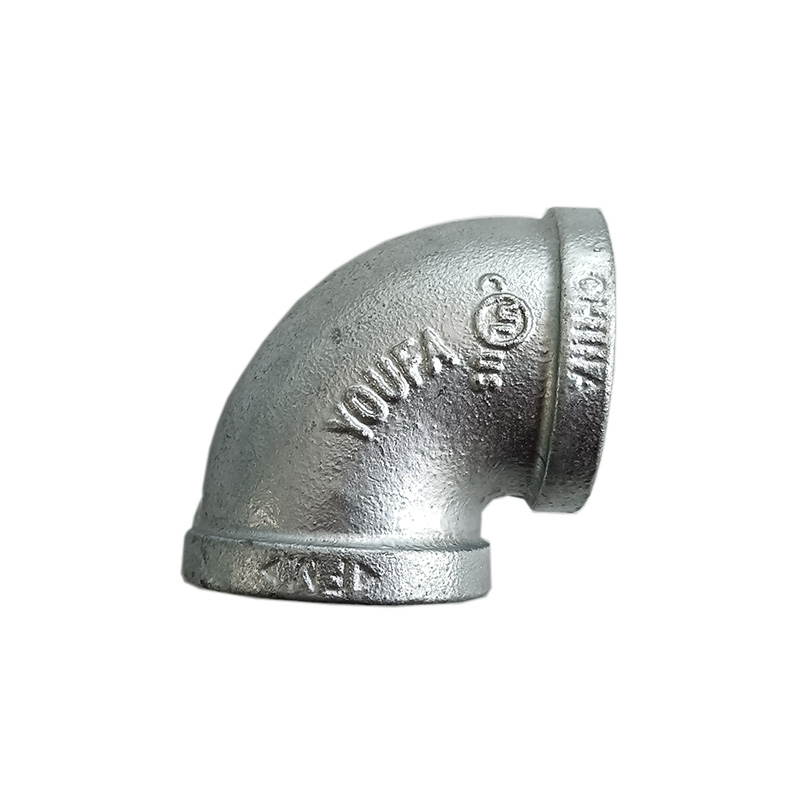

    90 Elbow

    Size I n  1/4  3/8  1/2  3/4 1 1¼
    mm 8 10 15 20 25 32
    A 20 24 27 32 37 44 .5
    Size In 1½ 2 2Y. 3 4 6
    mm 40 50 65 80 10 0 150
    A 48 .5 57 68 .5 77.5 96.5 129
    90 elbow

    45 Elbow

    Size In  1/2  3/4 1 1¼ 1½ 2
    mm 15 20 25 32 40 50
    A 22 25 28 33 36 43
    Size In 2½ 3 4 6
    mm 65 80 100 150
    A 48 .5 53 . 5 64 . 5 129
    45 elbow

    Reducing Elbow

    Size In  1/4  3/8  1/2  3/4 1 1¼
    mm 8 10 15 20 25 32
    A 20 25 28 33 38 45
    B 28 33 38 44 52 60
    Size  In 1½ 2 2½ 3 4
    mm 40 50 65 80 100
    A 50 58 69 77 .5 96.5
    B 65 74 90 100 120
    reducing elbow

    Reducing Tee

    Size In 1.25x1/2x1 1 1/4x3/4x1 1 1/4x1x1 11/2x1/2x1 1/4 1 1/2x3/4x1 1/4 1 1/2x1x1
    mm 32x15x25 32x20x25 32x25x25 40x15x32 40x20x32 40x25x25
    A 34 36 39 35 37 40
    B 37 40 40 41 43 44
    C 31 34 36 34 36 36
    Size In 1 1/2x1x1 1/4 1 1/2x1 1/4x1 1 1/2x1 1/4x1 1/4 2x1/2x1 1/2 2x3/4x1 1/2 2x1x1 14
    mm 40x25x32 40x32x25 40x32x32 50x15x40 50x20x40 50x25x32
    A 41 45 45 37 40 43
    B 45 47 47 47 49 51
    C 40 41 44.5 35 37 40
    Size In 2x1x1 1/2 2x1 1/4x1 1/4 2x1 1/4x1 1/2 2x1/2x1 2x1 1/2x1 1/2 2 1/2x3/4x2
    mm 50x25x40 50x32x32 50x32x40 50x40x25 50x40/40 65x20/50
    A 42 47 47 51 51 43.5
    B 49 53 53 54 54 57
    C 40 44.5 45 45 48.5 40
    Size In 2 1/2x1x2 2x1 1/4x1 1/2 2 1/2x1 1/4x2 2 1/2x1 1/2x2 2 1/2x2x2 3x1x2 1/2
    mm 65x25x50 65x32x40 65x32x50 65x40x50 65x50x50 80x25x65
    A 45 51.5 51.5 54.5 59.5 49.5
    B 58 61 61 61 64 67
    C 42 45 47 51 57 47.5
    Size In 3x1 1/4x2 1/2 3x1 1/2x2 1/2 3x2x2 1/2 3x2 1/2x2 1/2
    mm 80x32x65 80x40x65 80x50/65 80x40 x65
    A 54.5 57.5 61.5 61.5
    B 69 71 71 71
    C 51.5 54.5 59.5 59.5
    Reducing Tee 异径三通
