H BEAM FORMWORK

Timber beam

Min.Order Quantity: One container

Production time: usually 25 days

Port: Xingang Tianjin Port in China

Payment Terms: L/C,D/A,D/P,T/T

Product Detail

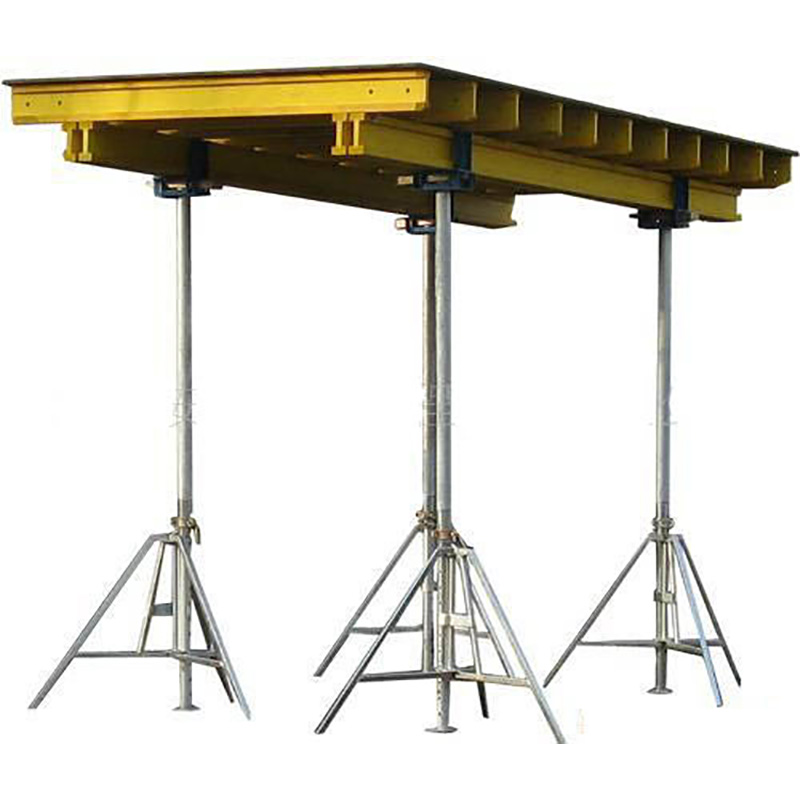

H20 construction timber beam

1.H20 construction timber beam widely applied to concrete formwork construction,used together with prop,tripod,forkhead.

2.Flange is made of spruce or radiata pin, finger-jointed into the web.Web is 3-layer plywood.

3. H20 construction timber beam is waterproof using a water-repellent color glaze.

4.The length of h20 construction timber beam can be 2.45m, 2.9m, 3.3m, 3.9m, 4.9m and 5.9m. Max length is 6m.

5.The end of beam can be sealed to protect moisture, reduce damage, increase service life.

Surface Treatment	Yellow painting, waterproof
Glue	WBP
Size	Length:3000-5900mm, Width: 200mm Thickness: 80mm
Flange	Material: Timber, LVL, Plywood
Flange	Size: 40803000~5900mm
Web	Material: Timber, LVL, Plywood
Web	Size:27/30mm135mm3000~5000mm
Usage	Construction, Concrete Shuttering, Formwork Support
Formaldehyde Emission standards	E0
Moisture content	Below 12%
Density	600kgs/cubic meter
End Cover	Red plastic wrap, waterproof
Certificate	CE, CARB, FSC, ISO9001
