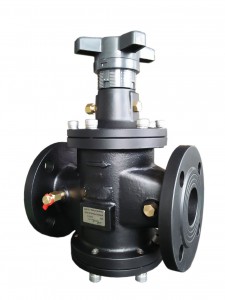

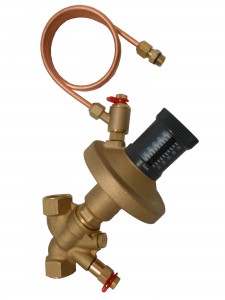

DN15 - DN250 Different Pressure Balancing Valve
The Series SDP Differential Pressure Balancing Valve is designed to keep constant differential pressure across the supply pipes and return pipes, control valve or terminal unit in air-conditioning or heating system. It avoids hydronic disturbances resulting from variations in system differential pressure.
Features:
Self-acting differential pressure conrol, no external power needed
On-site setting of differential pressure
Wide controllable range of differential pressure
Handwheel equipped with differential pressure indicator
Equipped with measuring points and air vent
Equipped with three-way measuring connector
| Technical Specification |
|
| Dimensions | DN40 - DN250 |
| Working Temperature | -10 - 120℃ |
| Working Pressure | PN25 / PN16 |
| Fluid Medium | Cold and Hot Water, Ethylene Glycol |
| Connection | Threaded Connection |
| Connection Standard | EN10226
GB/T7306.1-2008
|
| Control Deviation | +/-8% |
| Working Pressure | ≤ 400KPA |
Materials
1. Valve Body: Ductile iron
2. Core: Stainless steel
3. Stem: Stainless steel
4. Spring: Stainless steel
5. Diaphragm: EPDM
6. Sealling: NBR
7. Handwheel: PA
8. Test plug: Brass
| Technical Specification | |
| Dimensions | DN15 - DN50 |
| Working Temperature | -10 - 120℃ |
| Working Pressure | PN16 |
| Fluid Medium | Cold and Hot Water, Ethylene Glycol |
| Connection | Flange Connection |
| Connection Standard | EN10226 GB/T7306.1-2008 |
| Control Deviation | +/-8% |
| Working Pressure | ≤ 300KPA |
Materials
1. Body: Ductile iron
2. Seat: Brass
3. Core: Brass
4. Test plug: Brass
5. Shaft: Brass
6. Spring: Stainless steel
7. Diaphragm: EPDM
8. Handwheel: Plastic ABS
