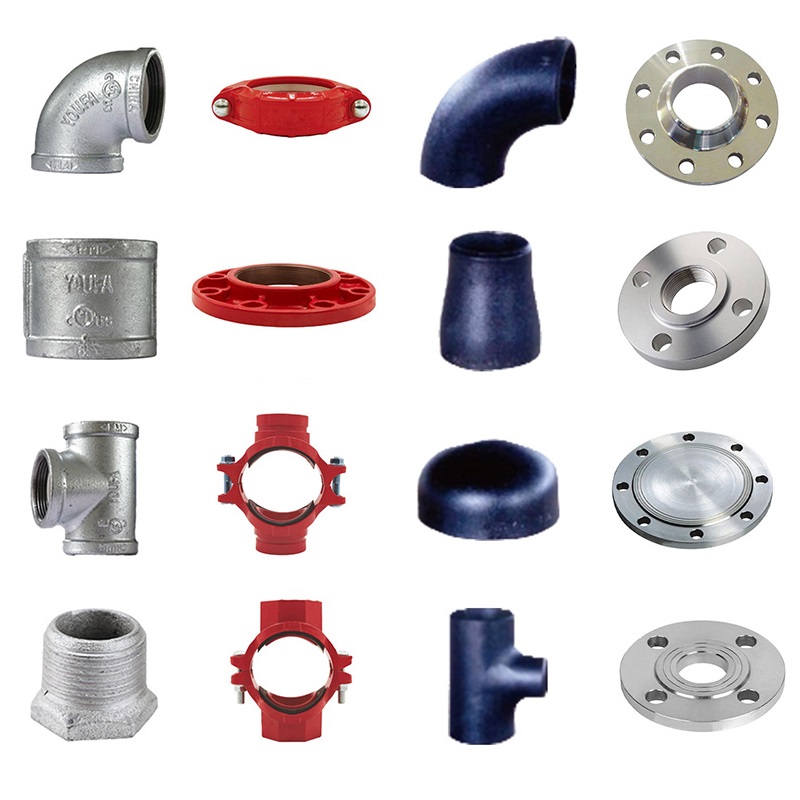

Iron and Steel Pipe Fittings

Iron and Steel Pipe Fittings Featured Image
  • Iron and Steel Pipe Fittings
  • Iron and Steel Pipe Fittings
  • Iron and Steel Pipe Fittings

Short Description:

seamless and welded iron and steel pipe fitting

H.S. CODE: 73079300


  • Min.Order Quantity: One container
  • Production time: usually 25 days
  • Port: Xingang Tianjin Port in China
  • Payment Terms: L/C,D/A,D/P,T/T
  • Price: FOB CFR CIF
  • Place of Origin: China
    • Download as PDF

    Product Detail

    Product Tags

    Tianjin Youfa International Trade Co., Ltd

    Carbon Steel Butt Welded and Seamless Pipe Fitting

    45°，90°AND 180°CARBON STEEL ELBOW

    Standard: ASME/ANSI B16.9 / ASTM A235

    Grade: WPB; WPC

    45°ELBOW

    45°Elbow

    90°ELBOW

    90°Elbow

    180°Elbow

    180°Elbow

    Outside Diameter  Wall Thickness
    (mm)    		 Theoretical Weight
    45° 90° 180°
    INCH MM SCH40 KG KG KG
    1/2 21.3 2.77 0.04 0.08 0.16
    3/4 26.7 2.87 0.05 0.1 0.21
    1 33.4 3.38 0.08 0.16 0.3
    1 1/4 42.2 3.56 0.13 0.25 0.5
    1 1/2 48.3 3.68 0.18 0.38 0.72
    2 60.3 3.91 0.38 0.65 1.3
    2 1/2 73.0 5.16 0.65 1.29 2.58
    3 88.9 5.49 1.02 2.03 4.06
    3 1/2 101.6 5.74 1.22 2.45 4.87
    4 114.3 6.02 1.93 3.85 7.1
    5 141.3 6.55 3.26 6.51 13.6
    6 168.3 7.11 6.06 10.1 20.2
    8 219.1 8.18 7.96 18.9 21.8
    10 273.1 9.27 12.5 25 50
    12 323.9 9.53 38.6 66.1 108
    14 355.6 9.53 34.1 68.1 136
    16 406.4 9.53 44.7 39.3 179
    18 457.2 9.53 56.5 113 226
    20 508 9.53 70 140 230
    22 558.8 9.53 77 170 340
    24 609.6 9.53 101 202 404
    26 660.4 9.53 119 238 476

    STRAIGHT AND REDUCER TEE

    Standard: ASME/ANSI B16.9 / ASTM A234

    Grade: WPB; WPC

    TEE

    Straight Tee

    REDUCER TEE

    Reducer Tee

    Outside Diameter Outside Diameter
    INCH MM INCH MM
    3/4x3/4 26.7x26.7 6x6 168.3x168.3
    3/4x1/2 26.7x21.3 6x5 168.3x141.3
    1x1 33.4x33.4 8x8 219.1x219.1
    1x3/4 33.4x26.7 8x6 219.1x168.3
    1 1/4x1 1/4 42.2x42.2 10x8 273x219.1
    1 1/4x1 42.2x33.4 10x10 273.1x273.1
    1 1/2x1 1/2 48.3x48.3 12x12 323.8x323.8
    1 1/2x1 1/4 48.3*42.2 12x10 323.8x273.1
    2x2 60.3zx60.3 14x14 355.6x355.6
    2x1 1/2 60.3x48.3 14x12 355.6x323.8
    3x3 88.9x88.9 18x18 457x457
    3x2 1/2 88.9x73 18x16 457x406.4
    4x4 114.3x114.3 20x20 508x508
    4x3 114.3x88.9 20x18 508x457
    5x5 141.3x141.3 24x24 610x610
    5x4 141.3x114.3 24x20 610x508

    CONCENTRIC AND ECCENTRIC REDUCER

    Standard: ASME/ANSI B16.9 / ASTM A234

    Grade: WPB; WPC

    CON REDUCER

    CON Reducer

    ECC REDUCER

    ECC Reducer

    Outside Diameter Outside Diameter
    INCH MM INCH MM
    3/4x1/2 26.7x21.3 5x3 141.3x88.9
    1X3/4 33.4X26.7 6x5 168.3x141.3
    1x1/2 33.4x21.3 6x4 168.3x114.3
    1 1/4x1 42.2x33.4 8x6 219.1x168.3
    1 1/4x3/4 42.2x26.7 8x4 219.1x114.3
    1 1/2x1 1/4 48.3*42.2 10x8 273.1x219.1
    1 1/2x1 48.3x33.4 10x6 273.1x168.3
    2x1 1/2 60.3x48.3 12x10 323.9x273.1
    2x1 60.3zx33.4 12x8 323.9x219.1
    2 1/2x2 73x60.3 14x12 355.6x323.8
    2 1/2x1 1/2 73x48.3 14x10 355.6x273.1
    3x2 1/2 88.9x73 18x16 457x406.4
    3x2 88.9x60.3 18x14 457x355.6
    4x3 114.3x88.9 20x18 508x457
    4x2 1/2 114.3x73 24x20 610x508
    5x4 141.3x114.3 24x18 610x457

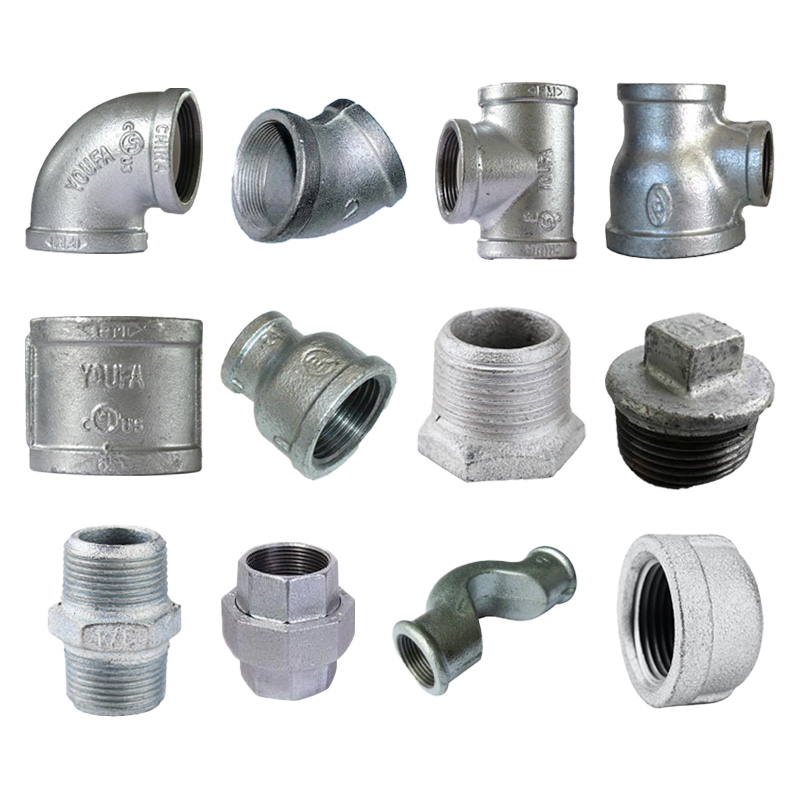

    Malleable Iron Galvanized and Black Fitting

    Standard: ENGB/T-3287 ; BS EN-10242; KHT300-6 etc.

    Material: Malleable Iron

    Surface: Galvanized or Natural Black

    Inner Surface: With or Without PVC Coated

    Bushing

    SIZE In 3/8*1/4 1/2*1/4 1/2*3/8 3/4*3/8 3/4*1/2 1*1/2
    mm 10x8 18x8 15x10 20x10 20x15
    L 18.5 22.5 22.5 24.5 24.5 28
    H 6 6 6 6 6 6
    S 18.4 22 22 29.6 29.6 37.4
    Bushing

    Union

    SIZE In  1/2  3/4 1 1 1/4 1 1/2 2
    mm 15 20 25 32 40 50
    L 46 50 56 63 68 76
    SIZE In 2 1/2 3 4
    mm 65 80 100
    L 83 93 113.5
    union

    Straight Tee

    SIZE In  1/4  3/8  1/2  3/4 1 1 1/4
    mm 8 10 15 20 25 32
    A 20 24 27 32 37 44.5
    SIZE In 1 1/2 2 2 1/2 3 4 6
    mm 40 50 65 80 100 150
    A 48.5 57 68.5 77.5 96.5 129
    DSC00019 拷贝

    Coupling

    SIZE In  1/4  3/8  1/2  3/4 1 1 1/4
    mm 8 10 15 20 25 32
    L 26 29 35 38 44 49
    SIZE In 1 1/2 2 2 1/2 3 4 6
    mm 40 50 65 80 100 150
    L 53 63 72 77 91 118
    DSC00026 拷贝

    Reducering Socket

    Size mm 10x8 15x8 15x10 20x15 25x10 25x15
    In 3/8x1/4 1/2x1/4 1/2x3/8 3/4x1/2 1x3/8 1x1/2
    A 29 35 36 38 44 44
    Size mm 32x15 32x20 32x25 40x15 40x20 40x25
    In 1¼x1/2 1¼x3/4 1¼ x1 1½x1/2 1 ½x 3/ 4 1½ x1
    A 49 49 49 53 53 53
    Size mm 40x32 50x15 50x20 50x25 50x32 50x40
    In 1½x1¼ 2 x1/2 2x3/4 2x1 2x1¼ 2x1½
    A 53 63 63 63 63 63
    Size mm 65x15 65 x 20 65x25 65x32 65x40 65x50
    In 2½x1/2 2 ½x3/4 2 1/2x2 2½ x1¼ 2 ½x1½ 2 ½ x2
    A 72 72 72 72 72 72
    Size mm 80x15 80x 20 80x25 80x32 80x40 80x50
    In 3 x 1/2 3x3/4 3x1 3x1¼ 3x1½ 3x2
    A 71 71 71 71 71 71
    Size mm 80x65 100 x15 100x20 100 x 25 100x32 100x40
    In 3x2½ 4x1/2 4x3/4 4x1 4x1¼ 4x 1½
    A 71 84 84 84 84 84
    Size mm 100x50 100x 65 100x80 25x20
    In 4x2 4x2½ 4x3 1x3/4
    A 84 84 84 44
    Reducering Socket

    Octagonal Cap

    Size In  3/8  1/2  3/4 1 1 1/4 1 1/2
    mm 10 15 20 25 32 40
    A 17 19 22 24 27 28
    S 20.6 24.6 30.4 37.2 47 53
    Size In 2
    mm 50
    A 32
    S 65
    Octagonal Cap

    Plain Plug

    Size In  1/4  3/8  1/2  3/4 1 1¼
    mm 8 10 15 20 25 32
    L 15.5 17 22.5 24 27 30
    B 1 0 10 13 14 16 5 20
    S 6 7 10 12 15 18
    Size In 1½ 2 2½ 3 4
    mm 40 50 65 80 100
    L 31 36 40.5 45.5 51
    B 21 25 26 5 29.5
    s 22 26 30 34 44
    plain plug

    Barrel Nipple

    Size In  1/4  3/8  1/2  3/4 1 1 1/4
    mm 8 10 15 20 25 32
    L 36 36 44 47 53 56
    S 16.7 19.2 23.6 29.2 36 45
    Size In 1 1/2 2 2 1/2 3 4
    mm 40 50 65 80 100
    L 58 68 73 81 95
    S 63 63 79.4 91.6 117
    cast_iron_nipple

    90 Elbow

    Size I n  1/4  3/8  1/2  3/4 1 1¼
    mm 8 10 15 20 25 32
    A 20 24 27 32 37 44 .5
    Size In 1½ 2 2Y. 3 4 6
    mm 40 50 65 80 10 0 150
    A 48 .5 57 68 .5 77.5 96.5 129
    90 elbow

    45 Elbow

    Size In  1/2  3/4 1 1¼ 1½ 2
    mm 15 20 25 32 40 50
    A 22 25 28 33 36 43
    Size In 2½ 3 4 6
    mm 65 80 100 150
    A 48 .5 53 . 5 64 . 5 129
    45 elbow

    Reducing Elbow

    Size In  1/4  3/8  1/2  3/4 1 1¼
    mm 8 10 15 20 25 32
    A 20 25 28 33 38 45
    B 28 33 38 44 52 60
    Size  In 1½ 2 2½ 3 4
    mm 40 50 65 80 100
    A 50 58 69 77 .5 96.5
    B 65 74 90 100 120
    reducing elbow

    Reducing Tee

    Size In 1.25x1/2x1 1 1/4x3/4x1 1 1/4x1x1 11/2x1/2x1 1/4 1 1/2x3/4x1 1/4 1 1/2x1x1
    mm 32x15x25 32x20x25 32x25x25 40x15x32 40x20x32 40x25x25
    A 34 36 39 35 37 40
    B 37 40 40 41 43 44
    C 31 34 36 34 36 36
    Size In 1 1/2x1x1 1/4 1 1/2x1 1/4x1 1 1/2x1 1/4x1 1/4 2x1/2x1 1/2 2x3/4x1 1/2 2x1x1 14
    mm 40x25x32 40x32x25 40x32x32 50x15x40 50x20x40 50x25x32
    A 41 45 45 37 40 43
    B 45 47 47 47 49 51
    C 40 41 44.5 35 37 40
    Size In 2x1x1 1/2 2x1 1/4x1 1/4 2x1 1/4x1 1/2 2x1/2x1 2x1 1/2x1 1/2 2 1/2x3/4x2
    mm 50x25x40 50x32x32 50x32x40 50x40x25 50x40/40 65x20/50
    A 42 47 47 51 51 43.5
    B 49 53 53 54 54 57
    C 40 44.5 45 45 48.5 40
    Size In 2 1/2x1x2 2x1 1/4x1 1/2 2 1/2x1 1/4x2 2 1/2x1 1/2x2 2 1/2x2x2 3x1x2 1/2
    mm 65x25x50 65x32x40 65x32x50 65x40x50 65x50x50 80x25x65
    A 45 51.5 51.5 54.5 59.5 49.5
    B 58 61 61 61 64 67
    C 42 45 47 51 57 47.5
    Size In 3x1 1/4x2 1/2 3x1 1/2x2 1/2 3x2x2 1/2 3x2 1/2x2 1/2
    mm 80x32x65 80x40x65 80x50/65 80x40 x65
    A 54.5 57.5 61.5 61.5
    B 69 71 71 71
    C 51.5 54.5 59.5 59.5
    Reducing Tee 异径三通

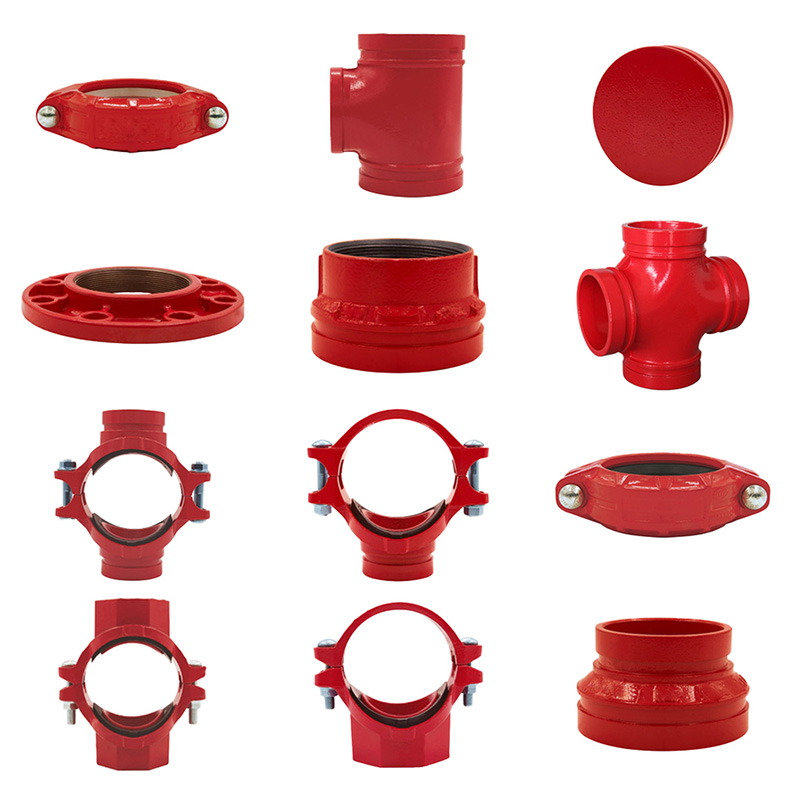

    Carbon Steel Grooved Fitting

    Standard: ANSI B36.10, JIS B2302,ASME/ANSI/BS1560/DIN2616 etc.

    Steel grade: GR.A GR.B

    Surface: Red Painted or Blue Painted or Silver Painted

    MECHANICAL CROSS (GROOVED)

    grooved mechanical cross
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    100x50(4x2) 114.3x60.3
    100x65 (4x2-1/2) 114.3x73
    100x65(4x2-1/2) 114.3x76. 1
    100x80(4x3) 114.3x88.9
    125x65(5x2-1/2) 139.7x76. 1
    125x80(5x3) 139.7x88.9
    150x65(6x2-1/2) 165.1x 76. 1
    150x80(6x3) 165.1x88.9
    150x100(6x4) 165.1x114.3
    200x65(8x2-1/2) 219.1x76.1
    200x80(8x3) 219.1x88.9
    200x100(8x4) 219.1x114.3

    MECHANICAL CROSS (THREADED)

    threaded mechanical cross
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    50x25(2x1) 60.3xRcl
    65x25(2-1/2x1) 76. lxRcl
    65x40(2-1/2x1-1/2) 76. lxRcl-1/2
    80x25(3x1) 88.9xRcl
    80x50(3x2) 88.9xRc2
    100x25(4x1) 108xRcl
    100x65 (4x2-1/2) 114.3xRc2-1/2
    125x25(5x1) 133xRcl
    125x80(5x3) 133xRc3
    125x25(5x1) 139.7xRcl
    150x25(6x1) 159xRcl
    150x80(6x3) 165. 1xRc3
    200x25(8x1) 219. lxRcl
    200x80(8x3) 219. 1xRc3

    MECHANICAL TEE (GROOVED)

    grooved mechanical tee
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    100x50(4x2) 114,3x60.3
    100x80(4x3) 114.3x88.9
    125x65(5x2-1/2) 139.7x76.1
    125x80(5x3) 139.7x88.9
    150x65 (6x2-1/2） 165.1x76.1
    150x100 (6x4) 165.1x114.3
    200x65(8x2-1/2) 219.1x76.1
    200x100(8x4) 219.1x114.3

    MECHANICAL TEE (THREADED)

    threaded mechanical tee
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    50x25(2x1) 60.3xRcl
    65x25(2-1/2x1) 76. lxRcl
    65x40(2-1/2x1-1/2) 76. lxRcl-1/2
    80x25(3x1) 88.9xRcl
    80x50(3x2) 88.9xRc2
    100x25(4x1) 108xRcl
    100x65(4x2-1/2) 108xRc2-1/2
    100x25(4x1) 114.3xRcl
    100x65 (4x2-1/2) 114.3xRc2-1/2
    125x25(5x1) 133xRcl
    125x80(5x3) 133xRc3
    125x25(5x1) 139.7xRcl

    REDUCING TEE (GROOVED)

    grooved reducing tee
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    65x50(2/1/2x2) 76.1x60.3
    80x65(3x2-1/2) 88.9x76.1
    100x50(4x2-1/2) 108x76.1
    100x50(4x2) 114.3x60.3
    100x80(4x3) 114.3x88.9
    125x100(5x4) 133x108
    125x65(5x2-1/2) 139.7x76.1
    125x100 (5x4) 139.7x114.3
    150x100(6x4) 159x108
    150x125(6x5) 159x133
    150x65 (6x2-1/2） 165.1x 76. 1
    150x125(6x5) 165.1x139.7
    200x50(8x2) 219.1x60.3
    200x150(8x6) 219.1x165.1

    TEE (GROOVED)

    grooved tee
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    50(2) 60.3
    65(2-1/2) 76.1
    80(3) 88.9
    100⑷ 108
    100⑷ 114.3
    125(5) 133
    125(5) 139.7
    150⑹ 159
    150(6) 165.1
    150⑹ 168.3
    200⑻ 219.1

    REDUCING CROSS (GROOVED)

    grooved reducing cross
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    100x65(4x2-1/2) 114.3x76
    100x80(4x3) 114.3x88.9
    125x65(5x2-1/2) 139.7x76
    125x100(5x4) 139.7x114.3
    150x65(6x2-1/2) 165.1x76
    150x125(6x5) 165.1x139. 7
    200x100(8x4) 219.1x114.3
    200x150(8x6) 219.1x165.1

    CROSS (GROOVED)

    cross
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    65(2-1/2) 76.1
    80⑶ 88.9
    100⑷ 114.3
    125⑸ 139.7
    150(6) 165
    200⑻ 219.1

    45° Elbow

    45° elbow

    22.5° Elbow

    22.5° elbow

    90° Elbow

    90° elbow
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    50⑵ 60.3
    65(2-1/2) 76.1
    80⑶ 88.9
    100⑷ 108
    100⑷ 114.3
    125⑸ 133
    125(5) 139.7
    150⑹ 159
    150⑹ 165
    200⑻ 219.1

    REDUCER (THREADED)

    Threaded reducer
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    50x20(2x3/4) 60.3xRc3/4
    50x40 (2x1-1/2) 60.3xRcl-1/2
    65x25(2-1/2x1) 76. lxRcl
    65 x 50 (2-1/2 x 2) 76. 1xRc2
    80x25(3x1) 88.9xRcl
    80x65(3x2-1/2) 88.9xRc2-1/2
    100x25(4x1) 108xRcl
    100x25(4x1) 114.3xRcl
    125x25(5x1) 133xRcl
    125x25(5x1) 139.7xRcl
    150x25(6x1) 159xRcl
    150x80(6x3) 159xRc3
    150x25(6x1) 165. lxRcl
    150x80(6x3) 165. 1xRc3
    200x25(8xRcl) 219. lxRcl
    200x80(8x3) 219. 1xRc3

    REDUCER (GROOVED)

    grooved reducer
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm)
    65 x 50 (2-1/2 x 2) 76.1x60.3
    80x50(3x2) 88.9x60.3
    80x65(3x2-1/2) 88.9x76.1
    100x65(4x2-1/2) 108x76.1
    100x80(4x3) 108x88.9
    100x50(4x2) 114.3x60.3
    100x80(4x3) 114.3x88.9
    125x65(5x2-1/2) 133x76.1
    125x100(5x4) 133x114.3
    125x50(5x2) 139.7x60.3
    125x100(5x4) 139.7x114.3
    150x65(6x2-1/2) 159x76.1
    150x125(6x5) 159x139.7
    150x50(6x2) 165.1x60.3
    150x125(6x5) 165.1x139.7
    200x65(8x2) 219.1x60.3
    200x150(8x6) 219.1x165.1

    HEAVY DUTY FLANGE

    (GROOVED)

    heavy duty flange
    NORMAL SIZE(mm/in) OUTSIDE DIAMETER(mm) WORKING PRESSURE(MPA) DIMENSIONS(MM) NO. OF HOLES
    A B c D
    65(2-1/2) 76.1 2.5 63.5 17 185 145 8
    65⑶ 88.9 2.5 63.5 17 200 160 8
    100⑷ 108 2.5 67.5 16.5 235 190 8
    100⑷ 114.3 2.5 68 15 230 190 8
    150⑹ 159 2.5 68 17 300 250 8
    150⑹ 165.1 2.5 68 17 300 250 8
    200⑻ 219.1 2.5 77 20 360 310 12

    ADAPTOR FLANGE

    (GROOVED)

    ADAPTOR FLANGE
    NORMAL SIZE(mm/in) OUTSIDE DIAMETER(mm) WORKING PRESSURE(MPA) DIMENSIONS(MM) NO. OF HOLES
    A B c D
    50⑵ 60.3 1.6 50 15 160 125 4
    65(2-1/2) 76.1 1.6 50 15 178 145 4
    80⑶ 88.9 1.6 50 15 194 160 8
    100⑷ 108 1.6 55 15 213 180 8
    100⑷ 114.3 1.6 55 15 213 180 8
    125⑸ 133 1.6 58 17 243 210 8
    125⑸ 139.7 1.6 58 17 243 210 8
    150⑹ 159 1.6 65 17 280 240 8
    150⑹ 165.1 1.6 65 17 280 240 8
    200⑻ 219.1 1.6 78 19 340 295 812

    BLIND FLANGE

    BLIND FLANGE
    NORMAL SIZE(mm/in) OUTSIDE DIAMETER(mm) WORKING PRESSURE(MPA) HEIGHT(MM)
    50⑵ 60.3 2.5 28
    65(2-1/2) 76.1 2.5 28
    80⑶ 88.9 2.5 29
    100⑷ 108 2.5 31
    100⑷ 114.3 2.5 31
    125(5) 133 2.5 31.5
    125⑸ 139.7 2.5 31.5
    150⑹ 159 2.5 31.5
    150⑹ 165.1 2.5 31
    200⑻ 219.1 2.5 36.5

    THREADED FLANGE

    THREADED FLANGE
    NORMAL SIZE (mm/in) OUTSIDE DIAMETER(mm) WORKING PRESSURE(MPA) DIMENSIONS(MM) NO. OF HOLES
    A B c D
    25⑴ Rcl 1.6 18 10 85 110 4
    32(1-1/4) Rcl-1/4 1.6 18 11 100 130 4
    40(1-1/2) Rcl-1/2 1.6 19 13 110 145 4
    50(2) Rc2 1.6 20 13 125 155 4
    65(2-1/2) Rc2-1/2 1.6 21 15 144 178 4
    80⑶ Rc3 1.6 25.5 15 160 193.5 8
    100⑷ Rc4 1.6 25.75 15 180 213.5 8

    BOLTS & NUTS

    bolts and nuts
    SIZE THREADED LENGTH L1 TOTAL LENGTH FISHTAIL BOLT WIDTH NUT WIDHT
    M10 x 55 30±3 55±1.2 14. 5±0. 5 9. 6~10
    M10 x 60 30±3 60±1.2 14.5 + 0.5 9. 6~10
    M10 x 65 30±3 65±1.2 14. 5±0. 5 9. 6~10
    M12 x 65 36+4 65±1.2 15.2±0.4 11. 6~12
    M12 x 70 36+4 70+1. 2 15.2±0.4 11. 6 ~12
    M12 x 75 41+4 75+1. 2 15.2±0.4 11. 6 ~12
    M16 x 85 44+4 85+1. 2 19. 0-19. 9 15. 3~16
    M20 x 120 50+5 120+2. 0 24±0.8 18. 9~20

    The mechanical properties of bolts shall not be lower than grade 8.8 specified in GB / T 3098.1, and the thread tolerance shall be 6G. The mechanical properties of the nut shall comply with Grade 8 requirements specified for nuts in GB / T 3098.2, thread tolerance 6h.

    GASKET RING

    gasket ring
    NAME GASKET GENERAL SERVICE RECOMMENDATION TEMPERATURE RANGE
    EPDM E Water supply, drainage, sewage and normal temperature air, weak acid and weak alkali -30°C~+130°C
    NBR D Petroleum based oils -20°C〜+80°C
    SILICOMN RUBBER S Drinking water, hot dry air and some hot chemicals -40°C~+180°C

    Flange

    WELDING NECK FLANGE

    Standard: ASME/ANSI B16.9             Grade: WPB

    welded nack flange
    NPS OD ID Thickness Unit Weight
    inch mm mm mm kgs
     1/2 89 21.3 11.5 0.5
     3/4 99 26.9 13 0.7
    1 108 33.7 14.5 1.1
    1 1/4 117 42.4 16 1.5
    1 1/2 127 48.3 17.5 1.8
    2 152 60.3 19.5 2.7
    2 1/2 178 73 22.5 4.4
    3 190 88.9 24 5.2
    3 1/2 216 101.6 24 6.4
    4 229 114.3 24 7.5
    5 254 141.3 24 9.2
    6 279 168.3 25.5 11
    8 343 219.1 29 18.3
    10 406 273 30.5 25
    12 483 323.9 32 39
    14 533 355.6 35 51
    16 597 406.4 37 60
    18 635 457 40 71
    20 698 508 43 88
    24 813 610 48 119

    BLIND FLANGE

    Standard: ASME/ANSI B16.9             Grade: WPB

    blind flange
    NPS OD ID Thickness unit weight
    inch mm mm mm kgs
     1/2 89 21.3 11.5 0.4
     3/4 99 26.9 13 0.7
    1 108 33.7 16 0.9
    1 1/4 117 42.4 16 1.3
    1 1/2 127 48.3 17.5 1.6
    2 152 60.3 19.5 2.6
    2 1/2 178 73 22.5 4.1
    3 190 88.9 24 5
    3 1/2 216 101.6 24 6.4
    4 229 114.3 24 7.1
    5 254 141.3 24 9
    6 279 168.3 25.5 12
    8 343 219.1 29 21
    10 406 273 30.5 30
    12 483 323.9 32 45
    14 533 355.6 35 59
    16 597 406.4 37 79
    18 635 457 40 97
    20 698 508 43 124
    24 813 610 48 188

    SLIP ON FLANGE

    Standard: ASME/ANSI B16.9             Grade: WPB

    slip on flange
    NPS OD ID Thickness unit weight
    inch mm mm mm kgs
     1/2 89 22.5 11.5 0.4
     3/4 99 28 13 0.7
    1 108 34.5 14 0.8
    1 1/4 117 43.5 16 1.1
    1 1/2 127 49.5 17.5 1.4
    2 152 62 19.5 2.2
    2 1/2 178 73 22.5 3.6
    3 190 90.5 24 4.1
    3 1/2 216 103.5 24 5.2
    4 229 116 24 5.6
    5 254 144 24 6.3
    6 279 170.5 25.5 7.5
    8 343 221.5 29 12.6
    10 406 276.5 30.5 18.5
    12 483 327 32 28
    14 533 359 35 36
    16 597 410.5 37 46
    18 635 462 40 50
    20 698 513 43 64
    24 813 616 48 89

    THREADED FLANGE

    Standard: ASME/ANSI B16.9             Grade: WPB

    threaded flange
    NPS OD ID Thickness unit weight
    inch mm mm mm kgs
     1/2 89 21.3 11.5 0.4
     3/4 99 26.9 13 0.7
    1 108 33.7 14.5 0.9
    1 1/4 117 42.4 16 1.2
    1 1/2 127 48.3 17.5 1.5
    2 152 60.3 19.5 2.3
    2 1/2 178 76.1 22.5 3.7
    3 190 88.9 24 4.2
    3 1/2 216 101.6 24 5.3
    4 229 114.3 24 5.9
    5 254 141.3 24 7
    6 279 168.3 25.5 8.4
    8 343 219.1 29 13
    10 406 273 30.5 17.8
    12 483 323.9 32 29.5
    14 533 355.6 35 39
    16 597 406.4 37 47
    18 635 457 40 50
    20 696 508 43 68
    24 813 610 48 93

    WANT TO WORK WITH US?

    CONTACT US
  • Previous:
  • Next:

    • RELATED PRODUCTS

    Hit enter to search or ESC to close
