Butt welded carbon steel pipe fittings

Short Description:

Butt welded pipe fittings are a type of piping component used to connect pipes of different sizes or shapes. These fittings are made by butt welding the ends of two pipes together, and they come in a variety of shapes and sizes such as elbows, tees, reducers, and caps. Butt welded fittings are commonly used in high-pressure and high-temperature applications, where a seamless connection is required. They are also preferred for their strength, durability, and corrosion resistance.

H.S. CODE: 7307930000

Min.Order Quantity: One container

Production time: usually 25 days

Port: Xingang Tianjin Port in China

Payment Terms: L/C,D/A,D/P,T/T

Price: FOB CFR CIF

Place of Origin: China

Material: Carbon Steel

Send email to us Download as PDF

Product Detail

Product Tags

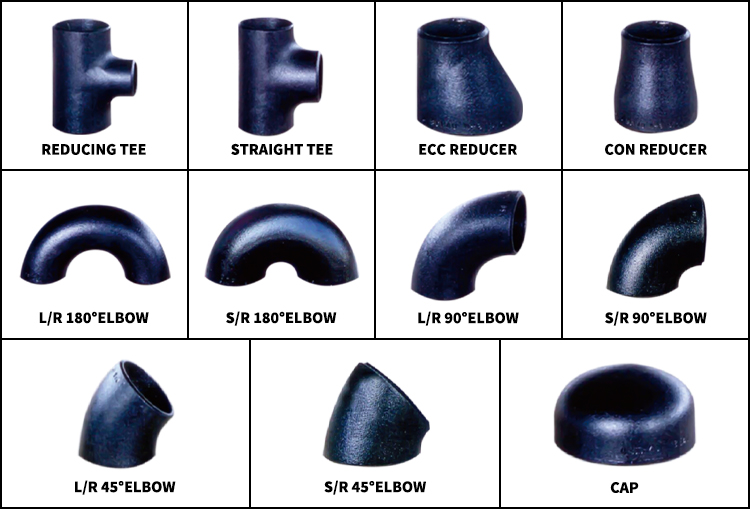

Carbon Steel Butt Welded Pipe Fitting

45°，90°AND 180°CARBON STEEL ELBOW

Standard: ASME/ANSI B16.9 / ASTM A235

Grade: WPB; WPC

45°Elbow

90°Elbow

180°Elbow

Outside Diameter		Wall Thickness (mm)	Theoretical Weight
Outside Diameter		Wall Thickness (mm)	45°	90°	180°
INCH	MM	SCH40	KG	KG	KG
1/2	21.3	2.77	0.04	0.08	0.16
3/4	26.7	2.87	0.05	0.1	0.21
1	33.4	3.38	0.08	0.16	0.3
1 1/4	42.2	3.56	0.13	0.25	0.5
1 1/2	48.3	3.68	0.18	0.38	0.72
2	60.3	3.91	0.38	0.65	1.3
2 1/2	73.0	5.16	0.65	1.29	2.58
3	88.9	5.49	1.02	2.03	4.06
3 1/2	101.6	5.74	1.22	2.45	4.87
4	114.3	6.02	1.93	3.85	7.1
5	141.3	6.55	3.26	6.51	13.6
6	168.3	7.11	6.06	10.1	20.2
8	219.1	8.18	7.96	18.9	21.8
10	273.1	9.27	12.5	25	50
12	323.9	9.53	38.6	66.1	108
14	355.6	9.53	34.1	68.1	136
16	406.4	9.53	44.7	39.3	179
18	457.2	9.53	56.5	113	226
20	508	9.53	70	140	230
22	558.8	9.53	77	170	340
24	609.6	9.53	101	202	404
26	660.4	9.53	119	238	476

STRAIGHT AND REDUCER TEE

Standard: ASME/ANSI B16.9 / ASTM A234

Grade: WPB; WPC

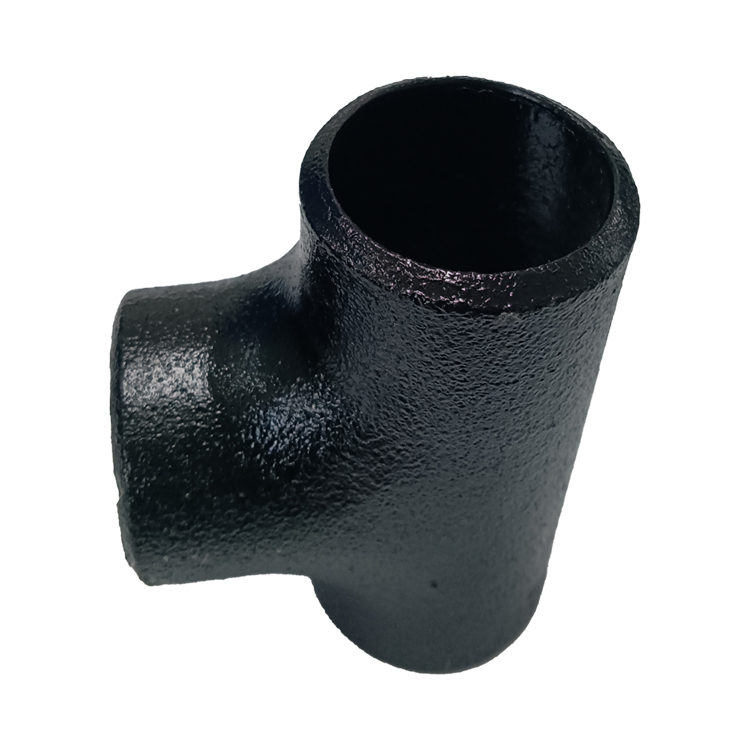

Straight Tee

Reducer Tee

Outside Diameter		Outside Diameter
INCH	MM	INCH	MM
3/4x3/4	26.7x26.7	6x6	168.3x168.3
3/4x1/2	26.7x21.3	6x5	168.3x141.3
1x1	33.4x33.4	8x8	219.1x219.1
1x3/4	33.4x26.7	8x6	219.1x168.3
1 1/4x1 1/4	42.2x42.2	10x8	273x219.1
1 1/4x1	42.2x33.4	10x10	273.1x273.1
1 1/2x1 1/2	48.3x48.3	12x12	323.8x323.8
1 1/2x1 1/4	48.3*42.2	12x10	323.8x273.1
2x2	60.3zx60.3	14x14	355.6x355.6
2x1 1/2	60.3x48.3	14x12	355.6x323.8
3x3	88.9x88.9	18x18	457x457
3x2 1/2	88.9x73	18x16	457x406.4
4x4	114.3x114.3	20x20	508x508
4x3	114.3x88.9	20x18	508x457
5x5	141.3x141.3	24x24	610x610
5x4	141.3x114.3	24x20	610x508

CONCENTRIC AND ECCENTRIC REDUCER

Standard: ASME/ANSI B16.9 / ASTM A234

Grade: WPB; WPC

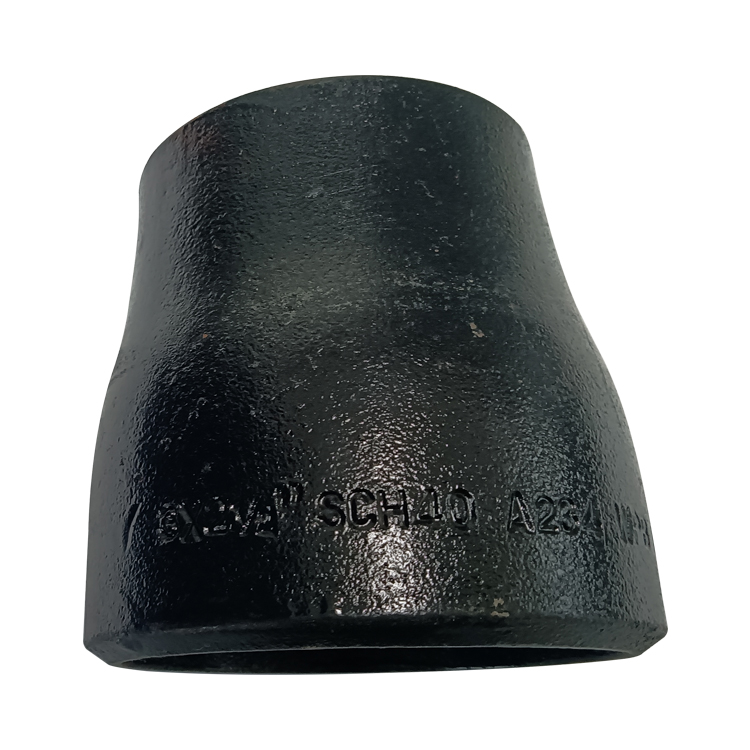

CON Reducer

ECC Reducer

Outside Diameter		Outside Diameter
INCH	MM	INCH	MM
3/4x1/2	26.7x21.3	5x3	141.3x88.9
1X3/4	33.4X26.7	6x5	168.3x141.3
1x1/2	33.4x21.3	6x4	168.3x114.3
1 1/4x1	42.2x33.4	8x6	219.1x168.3
1 1/4x3/4	42.2x26.7	8x4	219.1x114.3
1 1/2x1 1/4	48.3*42.2	10x8	273.1x219.1
1 1/2x1	48.3x33.4	10x6	273.1x168.3
2x1 1/2	60.3x48.3	12x10	323.9x273.1
2x1	60.3zx33.4	12x8	323.9x219.1
2 1/2x2	73x60.3	14x12	355.6x323.8
2 1/2x1 1/2	73x48.3	14x10	355.6x273.1
3x2 1/2	88.9x73	18x16	457x406.4
3x2	88.9x60.3	18x14	457x355.6
4x3	114.3x88.9	20x18	508x457
4x2 1/2	114.3x73	24x20	610x508
5x4	141.3x114.3	24x18	610x457
