aluminum tower

Short Description:

Min.Order Quantity: One container

Production time: usually 25 days

Port: Xingang Tianjin Port in China

Payment Terms: L/C,D/A,D/P,T/T

Send email to us Download as PDF

Product Detail

Product Tags

750 Single Wide Aluminum Tower

Single wide aluminum tower scope of use:

Single wide aluminum tower Can be used for roadside signs renovation, narrow indoor space, such as indoor, subway stations, corridors, tunnels, channels, reservoirs, buildings, halls, elevators and so on

Specification:

Width	Frame height	Tower height	Material
750	2000	3000	Aluminum 6061-T6
750	2000	5000
750	2000	7000
750	2000	9000
750	2000	11000

The width of the single wide aluminum tower is 0.75m, the length is 2.0 m, 2.5m and 3.0 m, the carrying capacity of the whole frame (including its own weight) is 750kg, the bearing weight of each board is 230kg, the bearing weight of casters is 900kg, and the feet can be adjusted to 40cm. The maximum construction height is 12m.

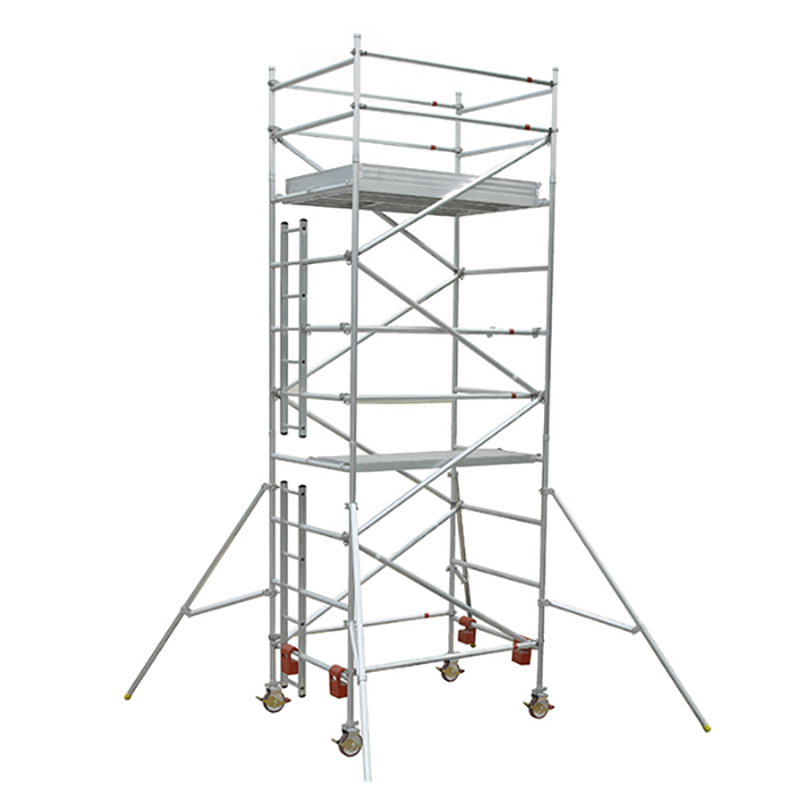

1350 Double Wide Aluminum Tower

The "double wide aluminum alloy scaffolding" refers to the frame of the upper and lower spacing of 46cm is a kind of aluminum alloy scaffolding. General market, this kind of aluminum alloy scaffolding can also be divided into: double width vertical ladder type aluminum alloy scaffolding, double width 70 degrees inclined ladder type aluminum alloy scaffolding and double width 45 degrees inclined ladder type aluminum alloy scaffolding these three categories.

Specification
